Automatic Block Division

This section will introduce you how to divide block automatically.

PreviousCollaborative Marking GCPsNextGet3D ModelFun

Last updated 2 months ago

For a one-time import of hundreds of thousands of images for aerial triangulation calculation, Get3D Mapper supports automatic division of blocks through algorithms, and the whole process is convenient and efficient without manual effort.

In Aerial Triangulation Setting Interface, select Auto Split and set the block image number.

The software will quickly and automatically divide the sub-blocks by algorithm.

Dividing sub-blocks helps to improve computing efficiency, increase cluster utilization, and facilitate parallel computing in the cluster.

Version Before 6.2

The automatic block division in version 6.2 operates as follows:

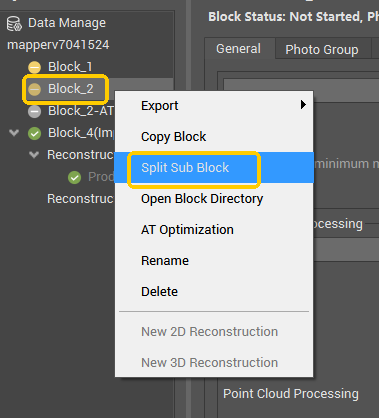

For an imported block, select it, right-click it, and click Split Sub Block. the Split Photo Group window will pop up.

Select the block, click Auto Split, and enter the number of photos you want to include in a single sub-block. Click Start Split in the upper right corner.

The software will quickly and automatically divide the sub-blocks by algorithm.

Click OK in the lower right corner to finish splitting the sub-blocks.

When a single block contains many images, clicking Submit AT brings up a pop-up that suggests dividing sub-blocks.

📁

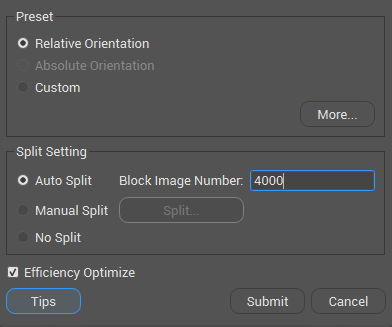

Split Setting

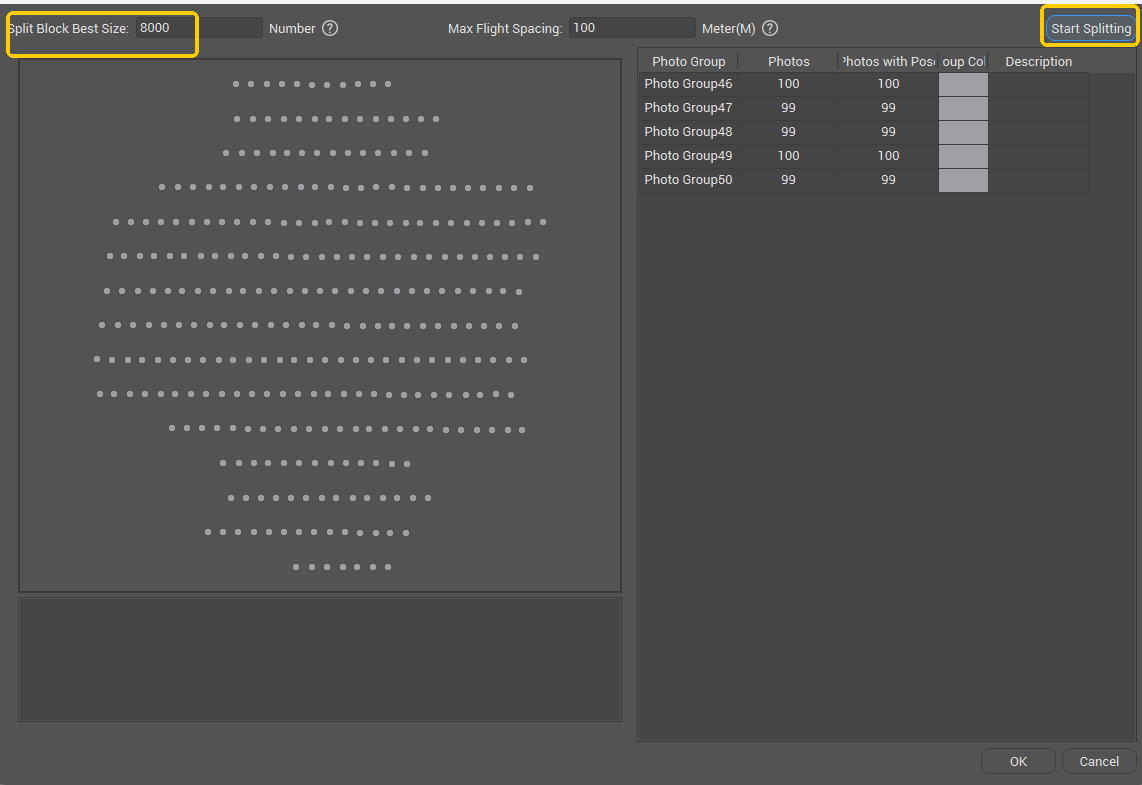

Split Photo Groups Interface

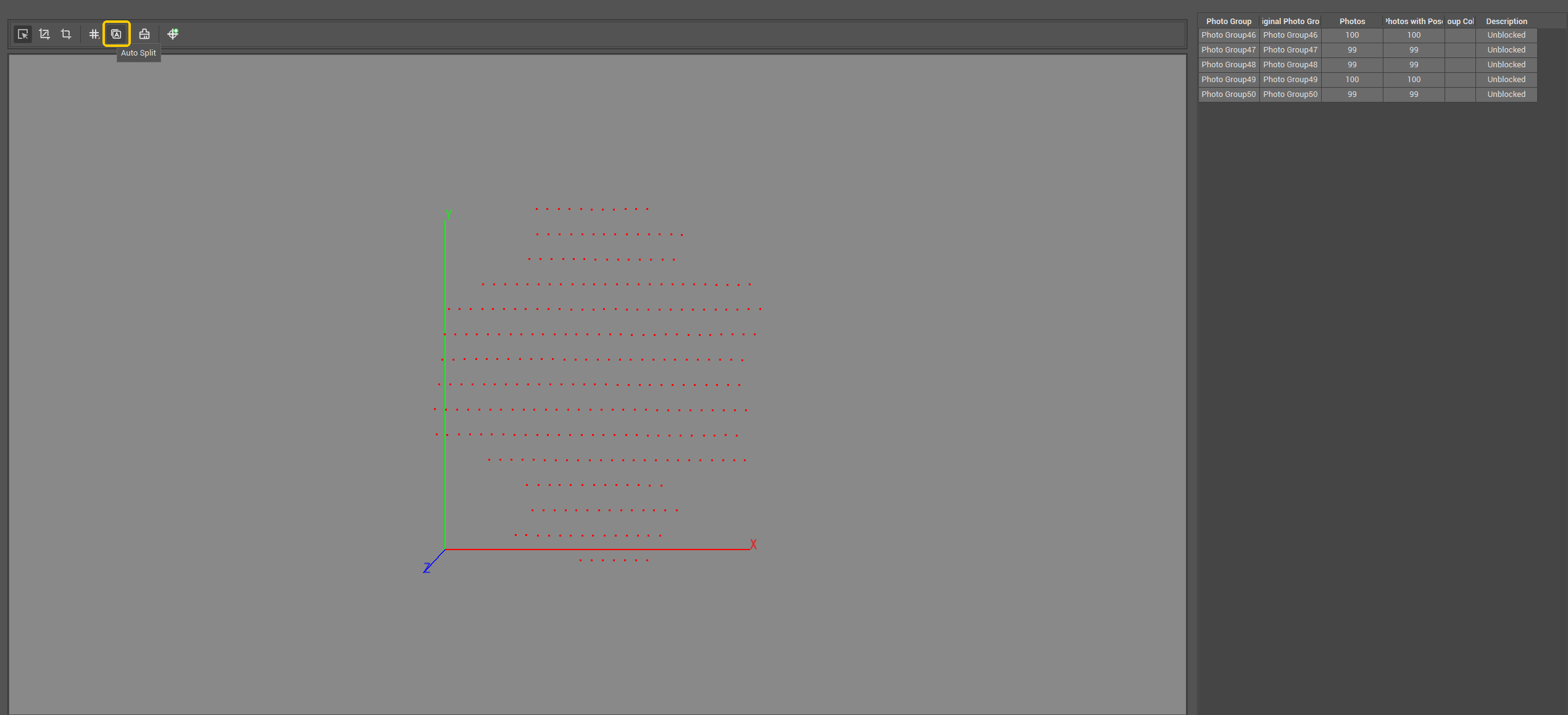

Auto Split Interface
