Get3D Engine

Get3D Engine is a work module, running in the background processing tasks, can be online cluster processing jobs.

PreviousSoftware OverviewNextProject Tree

Last updated 2 months ago

1 Principles of Engine

Get3D Engine features a monitoring function for quickly checking engine status, utilization, and modifying settings. Users can adjust configurations such as the "job queue directory," "cache directory," "engine capabilities," and control the engine with "start/stop" options.

  • Job Queue Directory: Defines the job path of the current project, the jobs submitted by the current project are stored under this path, waiting for the engine to accept the processing.

  • Cache Directory: Stores temporary files during job processing, the path needs to be set to the local disk.

In the Get3D Mapper main interface, the Job Queue Directory is used to store submitted jobs. The Get3D Engine retrieves jobs submitted by Get3D Mapper from the Job Queue Directory. The engine reads job information (e.g., AT_job/Reconstruction_job), processes the jobs, and outputs the results.

2 Engine Monitoring Panel

The Engine Monitoring Panel at the bottom of Get3D Mapper displays the job queue and engine status.

Function
Description

Job Queue Directory

Current job queue directory, where the project's jobs are stored.

Engines

The number of engines in the current job queue directory.

Running Engines

The number of running engines in the current job queue directory.

Refresh

Refresh engine status。

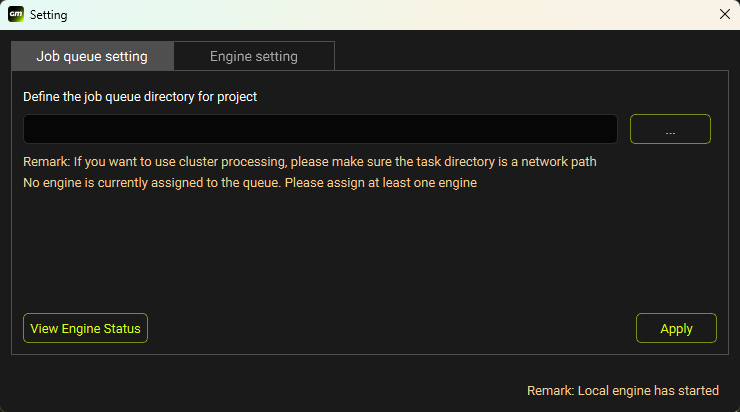

Job Queue Setting

Set the job queue for project. Cannot be changed when engine is running.

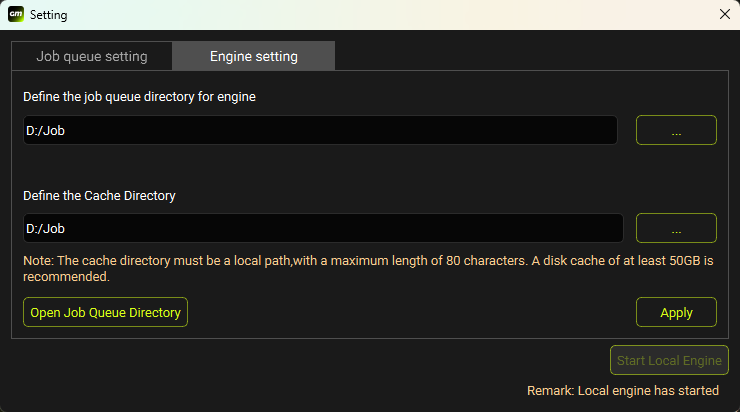

Engine Setting

Set the job queue for the engine to receive jobs.

View Engine Status

Check the status of running jobs of engines in the current project.

Start Local Engine

Start the local engine.

Local Engine

The status of the local engine includes four states:s:

None: Engine is not started. Pending: Engine is waitng to accept jobs.

Running: Engine is processing jobs

Inconsistent path: The engine's job queue directory differs from the project job queue.

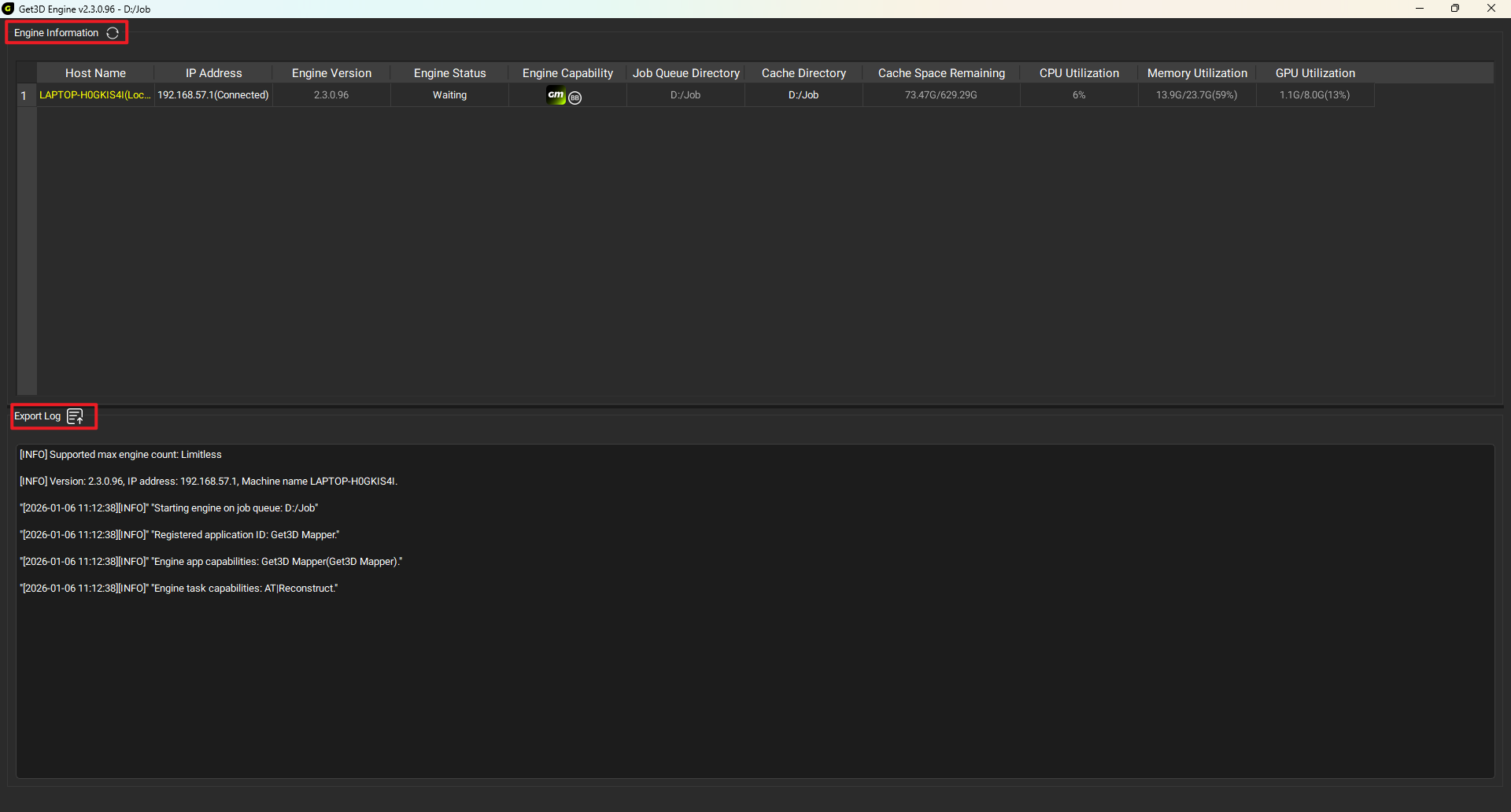

3 Get3D Engine Interface

Get3D Engine interface has two module: Engine Information and Engine Log

The Engine Information module contains host name, IP address, engine version, engine status, engine capability, job queue directory, cache directory, cache space, CPU utilization, memory utilization, and GPU memory utilization.

Function
Description

Host Name

Device name

IP Address

Device IP address

Engine Version

Get3D Engine version

Engine Status

Stop(closed), Waiting(opened without accepting a task), Running(task running), Abnormal (exited abnormally)

Engine Capability

Set the engine capability, the engine only processes jobs with this processing capability. AT: extract points, matching, small block bundle, overall bundle; Reconstruction

Job Queue Directory

Set directory for engine to receive jobs

Cache Directory

Set engine cache directory

Cache Space Remaining

Project cache disk, used space/hard drive space

CPU Utilization

CPU usage percentage

Memory Utilization

Memory, used memory/node memory

GPU Utilization

Video memory, used video memory/node video memory

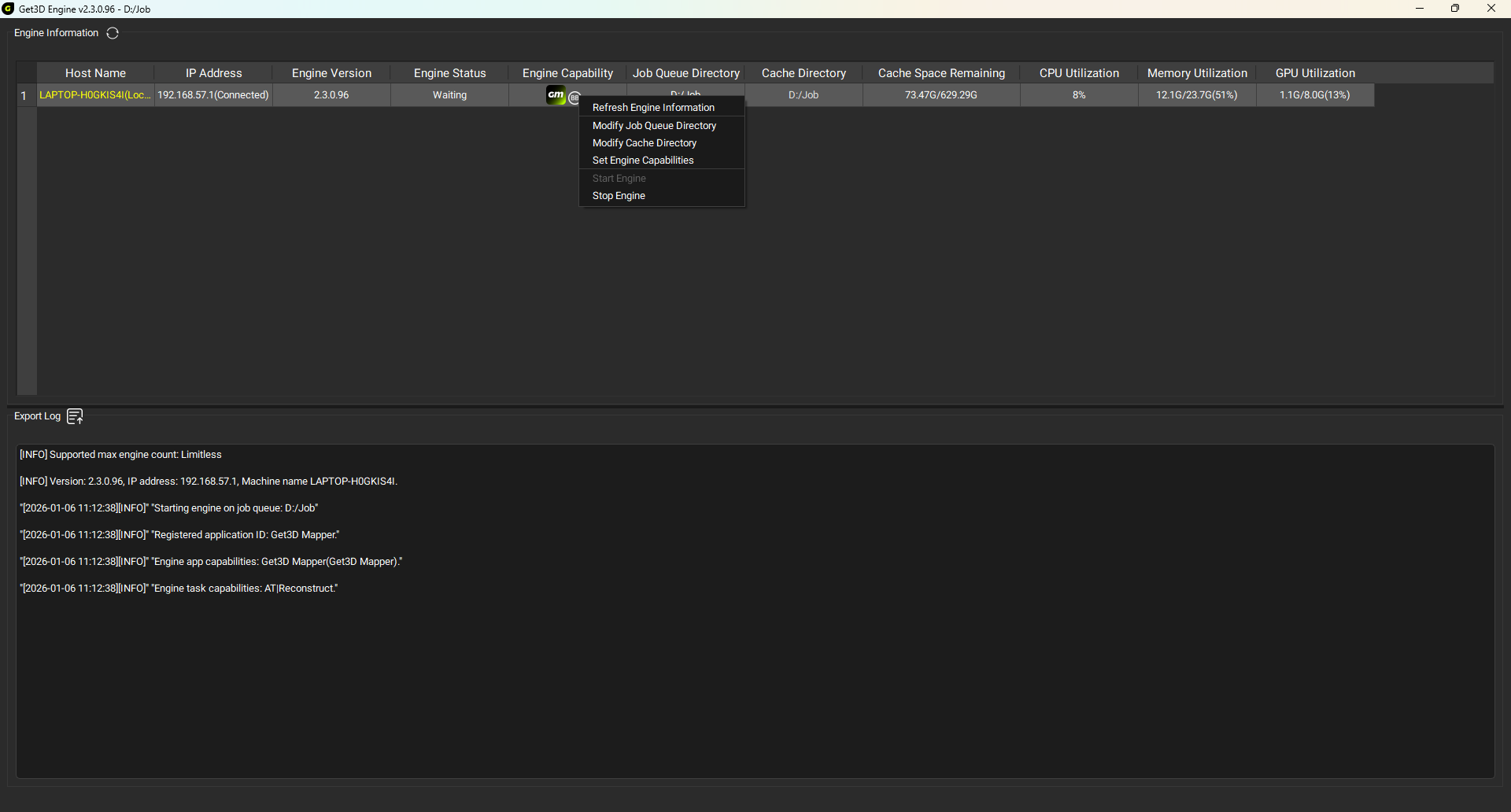

4 Get3D Engine Setting

The engine setting function is in the node information list, right-click to jump out, the setting function is shown in the figure below:

Function
Description

Refresh Engine Information

Refresh engine CPU, memory, GPU utilization, engine status, cache directory space remaining information

Modify Job Queue Directory

Modify the job queue directory of engine

Modify Cache Directory

Modify the cache directory of project

Set Engine Capabilities

Acquire the capability to receive AT/reconstruction jobs

Start Engine

Start accepting jobs

Stop Engine

Stop accepting jobs

📁
Job Queue Setting
Engine Setting
Engine Monitoring Pannel
Get3D Engine Interface
Set Engine
